solver::CartDataSpace< N_dim, SpaceID > Struct Template Reference

Sharing data space with derived classes. More...

#include <CartDataSpace.hpp>

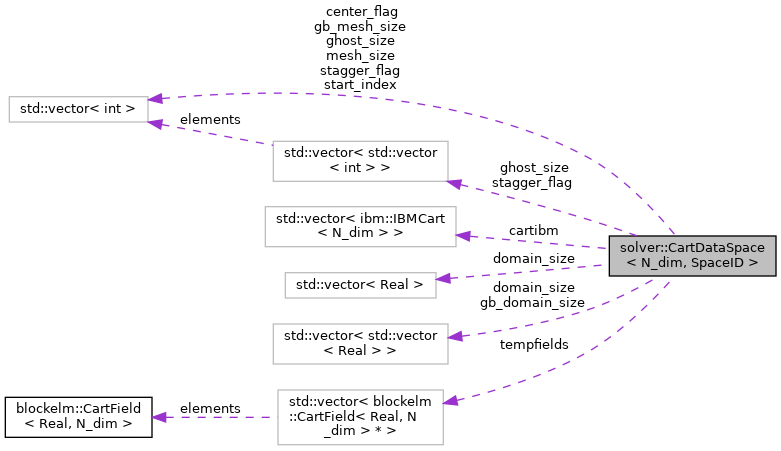

Collaboration diagram for solver::CartDataSpace< N_dim, SpaceID >:

Public Member Functions
	CartDataSpace ()
	~CartDataSpace ()
void	ConfigDataSpaceDict ()
	config information of mpi from ControlDict.in More...
void	CheckConfigDataSpaceDict ()

Static Public Member Functions
static std::vector< int >	CalTotalShape (const std::vector< int > &flag)

Static Public Attributes
static std::vector< std::vector< Real > >	domain_size
static std::vector< std::vector< Real > >	gb_domain_size
static std::vector< int >	mesh_size
static std::vector< int >	gb_mesh_size
static std::vector< int >	start_index
static std::vector< std::vector< int > >	ghost_size
static std::vector< std::vector< int > >	stagger_flag
static const std::vector< int >	center_flag = {0, 0, 0}
static blockelm::CartMesh< N_dim >	gb_cartmesh
static blockelm::CartBlock< N_dim >	cartblock
static gsmpi::GSMPICart< N_dim >	mpicomm
static std::vector< ibm::IBMCart< N_dim > >	cartibm
static int	ibm_flag
static std::vector< blockelm::CartField< Real, N_dim > * >	tempfields
static tml::tmlnode	dataspacetml
struct {
std::vector< Real >   domain_size
std::vector< int >   mesh_size
std::vector< int >   ghost_size
std::vector< int >   stagger_flag
}	dataspacedict

Detailed Description

template<int N_dim, int SpaceID = 999>
struct solver::CartDataSpace< N_dim, SpaceID >

Sharing data space with derived classes.

Template Parameters

N_dim

Constructor & Destructor Documentation

CartDataSpace()

template<int N_dim, int SpaceID = 999>

solver::CartDataSpace< N_dim, SpaceID >::CartDataSpace ( )

inline

~CartDataSpace()

template<int N_dim, int SpaceID = 999>

solver::CartDataSpace< N_dim, SpaceID >::~CartDataSpace ( )

inline

Member Function Documentation

CalTotalShape()

template<int N_dim, int SpaceID = 999>

static std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::CalTotalShape ( const std::vector< int > &  flag )

inlinestatic

References solver::CartDataSpace< N_dim, SpaceID >::gb_mesh_size, and solver::CartDataSpace< N_dim, SpaceID >::ghost_size.

Here is the caller graph for this function:

CheckConfigDataSpaceDict()

template<int N_dim, int SpaceID = 999>

void solver::CartDataSpace< N_dim, SpaceID >::CheckConfigDataSpaceDict ( )

inline

References solver::CartDataSpace< N_dim, SpaceID >::dataspacedict, solver::CartDataSpace< N_dim, SpaceID >::domain_size, solver::CartDataSpace< N_dim, SpaceID >::gb_domain_size, solver::CartDataSpace< N_dim, SpaceID >::gb_mesh_size, solver::CartDataSpace< N_dim, SpaceID >::ghost_size, solver::CartDataSpace< N_dim, SpaceID >::mesh_size, solver::CartDataSpace< N_dim, SpaceID >::mpicomm, solver::CartDataSpace< N_dim, SpaceID >::stagger_flag, and solver::CartDataSpace< N_dim, SpaceID >::start_index.

Here is the caller graph for this function:

ConfigDataSpaceDict()

template<int N_dim, int SpaceID = 999>

void solver::CartDataSpace< N_dim, SpaceID >::ConfigDataSpaceDict ( )

inline

config information of mpi from ControlDict.in

Parameters

filename

Returns

* void

References solver::CartDataSpace< N_dim, SpaceID >::cartblock, solver::CartDataSpace< N_dim, SpaceID >::cartibm, solver::CartDataSpace< N_dim, SpaceID >::CheckConfigDataSpaceDict(), solver::database::controldict, solver::CartDataSpace< N_dim, SpaceID >::dataspacedict, solver::CartDataSpace< N_dim, SpaceID >::dataspacetml, solver::CartDataSpace< N_dim, SpaceID >::ibm_flag, and solver::CartDataSpace< N_dim, SpaceID >::mpicomm.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

cartblock

template<int N_dim, int SpaceID = 999>

blockelm::CartBlock<N_dim> solver::CartDataSpace< N_dim, SpaceID >::cartblock

inlinestatic

cartibm

template<int N_dim, int SpaceID = 999>

std::vector<ibm::IBMCart<N_dim> > solver::CartDataSpace< N_dim, SpaceID >::cartibm

inlinestatic

center_flag

template<int N_dim, int SpaceID = 999>

const std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::center_flag = {0, 0, 0}

inlinestatic

struct { ... } solver::CartDataSpace< N_dim, SpaceID >::dataspacedict

dataspacetml

template<int N_dim, int SpaceID = 999>

tml::tmlnode solver::CartDataSpace< N_dim, SpaceID >::dataspacetml

inlinestatic

domain_size [1/2]

template<int N_dim, int SpaceID = 999>

std::vector<std::vector<Real> > solver::CartDataSpace< N_dim, SpaceID >::domain_size

inlinestatic

domain_size [2/2]

template<int N_dim, int SpaceID = 999>

std::vector<Real> solver::CartDataSpace< N_dim, SpaceID >::domain_size

gb_cartmesh

template<int N_dim, int SpaceID = 999>

blockelm::CartMesh<N_dim> solver::CartDataSpace< N_dim, SpaceID >::gb_cartmesh

inlinestatic

gb_domain_size

template<int N_dim, int SpaceID = 999>

std::vector<std::vector<Real> > solver::CartDataSpace< N_dim, SpaceID >::gb_domain_size

inlinestatic

gb_mesh_size

template<int N_dim, int SpaceID = 999>

std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::gb_mesh_size

inlinestatic

ghost_size [1/2]

template<int N_dim, int SpaceID = 999>

std::vector<std::vector<int> > solver::CartDataSpace< N_dim, SpaceID >::ghost_size

inlinestatic

ghost_size [2/2]

template<int N_dim, int SpaceID = 999>

std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::ghost_size

ibm_flag

template<int N_dim, int SpaceID = 999>

int solver::CartDataSpace< N_dim, SpaceID >::ibm_flag

inlinestatic

mesh_size [1/2]

template<int N_dim, int SpaceID = 999>

std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::mesh_size

inlinestatic

mesh_size [2/2]

template<int N_dim, int SpaceID = 999>

std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::mesh_size

mpicomm

template<int N_dim, int SpaceID = 999>

gsmpi::GSMPICart<N_dim> solver::CartDataSpace< N_dim, SpaceID >::mpicomm

inlinestatic

stagger_flag [1/2]

template<int N_dim, int SpaceID = 999>

std::vector<std::vector<int> > solver::CartDataSpace< N_dim, SpaceID >::stagger_flag

inlinestatic

stagger_flag [2/2]

template<int N_dim, int SpaceID = 999>

std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::stagger_flag

start_index

template<int N_dim, int SpaceID = 999>

std::vector<int> solver::CartDataSpace< N_dim, SpaceID >::start_index

inlinestatic

tempfields

template<int N_dim, int SpaceID = 999>

std::vector<blockelm::CartField<Real, N_dim> *> solver::CartDataSpace< N_dim, SpaceID >::tempfields

inlinestatic

---

The documentation for this struct was generated from the following file:

• /mnt/e/linuxOS/PhyStar/Solver/DataSpace/CartDataSpace.hpp
