dmdyn::init Namespace Reference

Classes
struct	ConstraintFunction
struct	CFunData
class	InitPartData

Typedefs
template<int N_dim>
using	pCFun = bool(*)(blin::Vecr< N_dim > &, std::vector< Real > &, InsideOutside)

Enumerations
enum class	CFunTag { None , Box , Sphere }
enum	InsideOutside { In = 1 , Out = 0 }
enum class	OverlapTag { OverLap = 1 , NoOverLap = 0 }
enum class	InitTag {   Random , Local , Value , FromFile ,   FromFun , LocalFluidRotation , None = 999 }

Functions
static CFunTag	vConfigCFunTag (std::string type)
static InsideOutside	vConfigInsideOutside (std::string type)
template<int N_dim>
bool	None (blin::Vecr< N_dim > &pos, std::vector< Real > &params, InsideOutside flag=InsideOutside::In)
template<int N_dim>
bool	Box (blin::Vecr< N_dim > &pos, std::vector< Real > &params, InsideOutside flag=InsideOutside::In)
	Constraint function of box. More...
template<int N_dim>
bool	Sphere (blin::Vecr< N_dim > &pos, std::vector< Real > &params, InsideOutside flag=InsideOutside::In)
	Constraint function of Sphere(3D) or Circ (2D) More...
static InitTag	vConfigInitTag (std::string type)

Typedef Documentation

pCFun

template<int N_dim>

using dmdyn::init::pCFun = typedef bool (*)(blin::Vecr<N_dim> &, std::vector<Real> &, InsideOutside)

Enumeration Type Documentation

CFunTag

enum dmdyn::init::CFunTag

strong

Enumerator
None
Box
Sphere

InitTag

enum dmdyn::init::InitTag

strong

Enumerator
Random
Local
Value
FromFile
FromFun
LocalFluidRotation
None

InsideOutside

enum dmdyn::init::InsideOutside

Enumerator
In
Out

OverlapTag

enum dmdyn::init::OverlapTag

strong

Enumerator
OverLap
NoOverLap

Function Documentation

Box()

template<int N_dim>

bool dmdyn::init::Box ( blin::Vecr< N_dim > &  pos, std::vector< Real > &  params, InsideOutside  flag = InsideOutside::In  )

inline

Constraint function of box.

Template Parameters

N_dim

Parameters

pos
params	for 2D, [xc,yc,lx,ly]; for 3D, [xc,yc,zc,lx,ly,lz]

Returns

true inside

false outside

None()

template<int N_dim>

bool dmdyn::init::None ( blin::Vecr< N_dim > &  pos, std::vector< Real > &  params, InsideOutside  flag = InsideOutside::In  )

inline

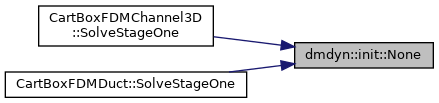

Here is the caller graph for this function:

Sphere()

template<int N_dim>

bool dmdyn::init::Sphere ( blin::Vecr< N_dim > &  pos, std::vector< Real > &  params, InsideOutside  flag = InsideOutside::In  )

inline

Constraint function of Sphere(3D) or Circ (2D)

Template Parameters

N_dim

Parameters

pos
params	for 2D, [xc,yc,r]; for 3D, [xc,yc,zc,r]

Returns

true inside

false outside

vConfigCFunTag()

static CFunTag dmdyn::init::vConfigCFunTag ( std::string  type )

inlinestatic

References Box, None, and Sphere.

Here is the caller graph for this function:

vConfigInitTag()

static InitTag dmdyn::init::vConfigInitTag ( std::string  type )

inlinestatic

References FromFile, Local, LocalFluidRotation, None, Random, and Value.

Here is the caller graph for this function:

vConfigInsideOutside()

static InsideOutside dmdyn::init::vConfigInsideOutside ( std::string  type )

inlinestatic

References In, and Out.

Here is the caller graph for this function:
