fileio::PointParticleCartRegularD< N_dim > Class Template Reference

particle io for cartesian coordinates, double percision More...

#include <PointParticleIO.hpp>

Collaboration diagram for fileio::PointParticleCartRegularD< N_dim >:

Public Member Functions
	PointParticleCartRegularD ()
	Construct a new Fluid Cart Regular D object. More...
	~PointParticleCartRegularD ()
	Destroy the Fluid Cart Regular D object. More...
auto &	SetFileAttr (std::string name, std::string val)
	Set the File Attributes object not to create attribute, just set the standard attribute to the buffer in current object. More...
void	Print ()
	Print the abstract of the current file attributes. More...
auto	CreateFile (const int istep, const std::string ftype)
	Create a hdf5 File. More...
void	CloseFile ()
	Close opened hdf5 file. More...
auto &	AddPPField (const std::string fieldname, auto data[], long unsigned int len)
auto &	AddPPField (const std::string fieldname, auto &vecdata)
auto	OpenFile (const int istep, const std::string ftype)
auto &	ReadPPField (const std::string fieldname, auto &vecdata)

Public Attributes
hid_t	fileid
	handles of HDF5 More...
hid_t	filepropid
hid_t	parttypeid
hid_t	otherinfoid
hid_t	fieldid

Private Attributes
const int	_dim = N_dim
std::string	_casename = "default"
std::string	_filestyle = "onestep"
std::string	_filepath = "./"
std::string	_filenameprefix = "ppfield"
int	_numbernamelength = 7
long unsigned long *	_count = nullptr
long unsigned long *	_displacement = nullptr
int	_proc = 1
int	_rank = 0

Detailed Description

template<int N_dim>
class fileio::PointParticleCartRegularD< N_dim >

particle io for cartesian coordinates, double percision

Constructor & Destructor Documentation

PointParticleCartRegularD()

template<int N_dim>

fileio::PointParticleCartRegularD< N_dim >::PointParticleCartRegularD ( )

inline

Construct a new Fluid Cart Regular D object.

~PointParticleCartRegularD()

template<int N_dim>

fileio::PointParticleCartRegularD< N_dim >::~PointParticleCartRegularD ( )

inline

Destroy the Fluid Cart Regular D object.

References fileio::PointParticleCartRegularD< N_dim >::_count, and fileio::PointParticleCartRegularD< N_dim >::_displacement.

Member Function Documentation

AddPPField() [1/2]

template<int N_dim>

auto & fileio::PointParticleCartRegularD< N_dim >::AddPPField	(	const std::string	fieldname,
		auto &	vecdata
	)

References fileio::AddAttribute(), fileio::AddDataSet(), fileio::CreatePointParticleCompound(), and fileio::DestroyCompound().

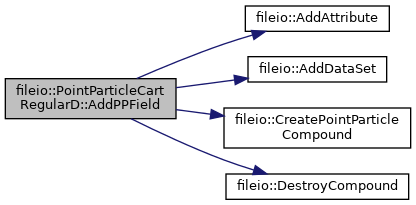

Here is the call graph for this function:

AddPPField() [2/2]

template<int N_dim>

auto & fileio::PointParticleCartRegularD< N_dim >::AddPPField	(	const std::string	fieldname,
		auto	data[],
		long unsigned int	len
	)

References fileio::AddAttribute(), fileio::AddDataSet(), and fileio::DestroyCompound().

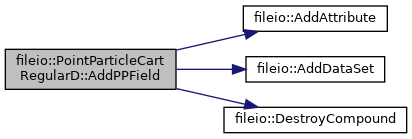

Here is the call graph for this function:

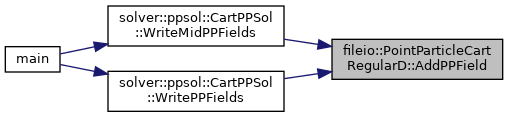

Here is the caller graph for this function:

CloseFile()

template<int N_dim>

void fileio::PointParticleCartRegularD< N_dim >::CloseFile

Close opened hdf5 file.

Here is the caller graph for this function:

CreateFile()

template<int N_dim>

auto fileio::PointParticleCartRegularD< N_dim >::CreateFile	(	const int	istep,
		const std::string	ftype
	)

Create a hdf5 File.

Parameters

istep	computation step
ftype	select a file style, onestep/mid

Returns

auto id of opened file

References fileio::AddAttribute(), fileio::intTostr(), fileio::PPFields(), fileio::PPFileProps(), fileio::PPOthers(), and fileio::PPTypes().

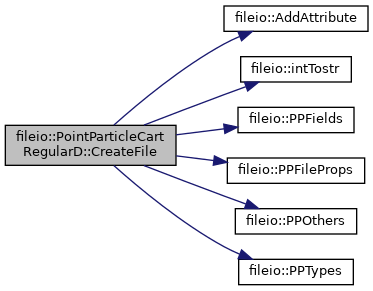

Here is the call graph for this function:

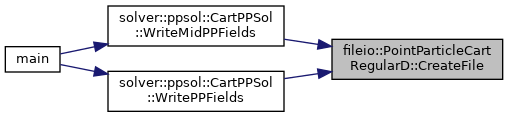

Here is the caller graph for this function:

OpenFile()

template<int N_dim>

auto fileio::PointParticleCartRegularD< N_dim >::OpenFile	(	const int	istep,
		const std::string	ftype
	)

References fileio::intTostr(), fileio::PPFields(), fileio::PPFileProps(), fileio::PPOthers(), fileio::PPTypes(), fileio::ReadAttribute(), and fileio::ReadStringAttribute().

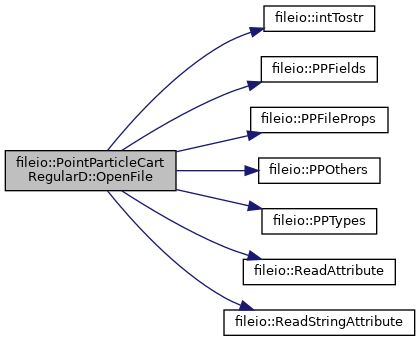

Here is the call graph for this function:

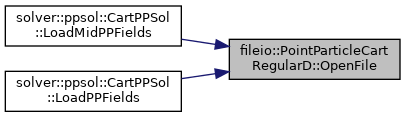

Here is the caller graph for this function:

Print()

template<int N_dim>

void fileio::PointParticleCartRegularD< N_dim >::Print

Print the abstract of the current file attributes.

References fileio::intTostr().

Here is the call graph for this function:

ReadPPField()

template<int N_dim>

auto & fileio::PointParticleCartRegularD< N_dim >::ReadPPField	(	const std::string	fieldname,
		auto &	vecdata
	)

References fileio::ReadDataSet().

Here is the call graph for this function:

Here is the caller graph for this function:

SetFileAttr()

template<int N_dim>

auto& fileio::PointParticleCartRegularD< N_dim >::SetFileAttr ( std::string  name, std::string  val  )

inline

Set the File Attributes object not to create attribute, just set the standard attribute to the buffer in current object.

Parameters

name	attribute name
val	attribute value

Returns

auto& *this

References fileio::PointParticleCartRegularD< N_dim >::_casename, fileio::PointParticleCartRegularD< N_dim >::_filenameprefix, fileio::PointParticleCartRegularD< N_dim >::_filepath, fileio::PointParticleCartRegularD< N_dim >::_filestyle, and fileio::strToLower().

Here is the call graph for this function:

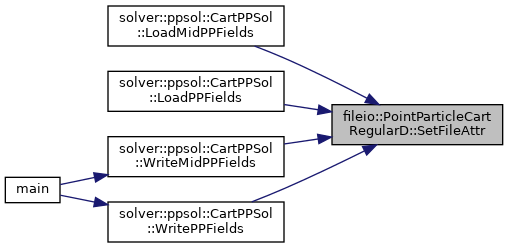

Here is the caller graph for this function:

Member Data Documentation

_casename

template<int N_dim>

std::string fileio::PointParticleCartRegularD< N_dim >::_casename = "default"

private

_count

template<int N_dim>

long unsigned long* fileio::PointParticleCartRegularD< N_dim >::_count = nullptr

private

_dim

template<int N_dim>

const int fileio::PointParticleCartRegularD< N_dim >::_dim = N_dim

private

_displacement

template<int N_dim>

long unsigned long* fileio::PointParticleCartRegularD< N_dim >::_displacement = nullptr

private

_filenameprefix

template<int N_dim>

std::string fileio::PointParticleCartRegularD< N_dim >::_filenameprefix = "ppfield"

private

_filepath

template<int N_dim>

std::string fileio::PointParticleCartRegularD< N_dim >::_filepath = "./"

private

_filestyle

template<int N_dim>

std::string fileio::PointParticleCartRegularD< N_dim >::_filestyle = "onestep"

private

_numbernamelength

template<int N_dim>

int fileio::PointParticleCartRegularD< N_dim >::_numbernamelength = 7

private

_proc

template<int N_dim>

int fileio::PointParticleCartRegularD< N_dim >::_proc = 1

private

_rank

template<int N_dim>

int fileio::PointParticleCartRegularD< N_dim >::_rank = 0

private

fieldid

template<int N_dim>

hid_t fileio::PointParticleCartRegularD< N_dim >::fieldid

fileid

template<int N_dim>

hid_t fileio::PointParticleCartRegularD< N_dim >::fileid

handles of HDF5

filepropid

template<int N_dim>

hid_t fileio::PointParticleCartRegularD< N_dim >::filepropid

otherinfoid

template<int N_dim>

hid_t fileio::PointParticleCartRegularD< N_dim >::otherinfoid

parttypeid

template<int N_dim>

hid_t fileio::PointParticleCartRegularD< N_dim >::parttypeid

---

The documentation for this class was generated from the following file:

• /mnt/e/linuxOS/PhyStar/IO/FileIO/PointParticleIO.hpp
