dmdyn::SmartPList< T > Class Template Reference

particle field list model More...

#include <SmartPList.hpp>

Collaboration diagram for dmdyn::SmartPList< T >:

Classes
class	Iterator

Public Member Functions
Iterator	begin ()
Iterator	end ()
Iterator	vbegin ()
Iterator	vend ()
	SmartPList ()
	SmartPList (const int &num, const int vnum=0)
void	Init (const int &num, const int vnum=0)
void	Clear ()
void	InitPresreveBuffer ()
void	ChangeStatus (const SPLTag &status)
void	AllocateBuffer ()
void	AllocateBuffer (const int lens0)
const T &	Add (const T &val)
	add element to pfield list More...
void	InitVirtualRegion ()
	set the virtual particle length to zero More...
const T &	AddVirtual (const T &val)
	add a virtual particle More...
const T &	GetAndRemove (const int &ind)
	Get element and Remove it. More...
void	Compact ()
	remove all empty cavity, will be called after particle send and recieve More...
void	InitCavityIndex ()
const int	Length ()
	length of valid field list More...
const int	MaxLength ()
	length of field list including removed position, not including the virtual particle part More...
const int	MaxLengthIncludeVirtual ()
const int	MaxVirtualRegionLength ()
const int	BufferLength ()
	length of the buffer More...
T &	RemovedList (const int &i)
int	RemovedMaxSize ()
std::string	PrintRemovedInd ()
T &	operator() (const int &i)
void	InitVirtualWaitingList ()
void	AddIndexToVirtualWaitingList (const int vind)
int	VirtualWaitingListMaxSize ()
T &	VirtualWaitingList (const int i)
T &	VirtualRegion (const int i)
void	SetAuxstep (const int &aup, const int &auf)

Public Attributes
int	auxstep_pdata = 0
int	auxstep_fdata = 0

Private Attributes
Array1< T >	_buffer
CavityIndex	_cind
CavityIndex	_vindtemp
int	_len = 0
int	_vlen = 0
SPLTag	_status = SPLTag::Free

Detailed Description

template<typename T>
class dmdyn::SmartPList< T >

particle field list model

buffer model:

|0|1|2|...|10|11|12|...|20|21|...|29|30| | | | | V V V V start _len-1 _len+_vlen-1 buffer size-1 =1.5(_len+_vlen)-1;

Template Parameters

T

Constructor & Destructor Documentation

SmartPList() [1/2]

template<typename T >

dmdyn::SmartPList< T >::SmartPList ( )

inline

SmartPList() [2/2]

template<typename T >

dmdyn::SmartPList< T >::SmartPList ( const int &  num, const int  vnum = 0  )

inline

Member Function Documentation

Add()

template<typename T >

const T& dmdyn::SmartPList< T >::Add ( const T &  val )

inline

add element to pfield list

Parameters

val

References dmdyn::AddOnly, dmdyn::CavityQueue< T >::Dequeue(), and dmdyn::CavityQueue< T >::IsEmpty().

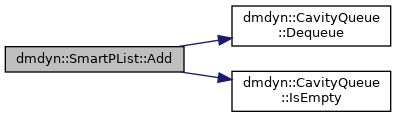

Here is the call graph for this function:

AddIndexToVirtualWaitingList()

template<typename T >

void dmdyn::SmartPList< T >::AddIndexToVirtualWaitingList ( const int  vind )

inline

References dmdyn::CavityQueue< T >::Inqueue().

Here is the call graph for this function:

AddVirtual()

template<typename T >

const T& dmdyn::SmartPList< T >::AddVirtual ( const T &  val )

inline

add a virtual particle

Parameters

val	usually a particleField

Returns

References dmdyn::AddVirtualListOnly.

AllocateBuffer() [1/2]

template<typename T >

void dmdyn::SmartPList< T >::AllocateBuffer ( )

inline

References dmdyn::ReadOnly.

AllocateBuffer() [2/2]

template<typename T >

void dmdyn::SmartPList< T >::AllocateBuffer ( const int  lens0 )

inline

References dmdyn::ReadOnly.

begin()

template<typename T >

Iterator dmdyn::SmartPList< T >::begin ( )

inline

BufferLength()

template<typename T >

const int dmdyn::SmartPList< T >::BufferLength ( )

inline

length of the buffer

Returns

const int

ChangeStatus()

template<typename T >

void dmdyn::SmartPList< T >::ChangeStatus ( const SPLTag &  status )

inline

Clear()

template<typename T >

void dmdyn::SmartPList< T >::Clear ( )

inline

Compact()

template<typename T >

void dmdyn::SmartPList< T >::Compact ( )

inline

remove all empty cavity, will be called after particle send and recieve

References dmdyn::CavityQueue< T >::IsEmpty(), and dmdyn::CavityQueue< T >::Pop().

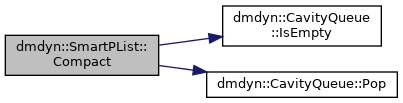

Here is the call graph for this function:

end()

template<typename T >

Iterator dmdyn::SmartPList< T >::end ( )

inline

GetAndRemove()

template<typename T >

const T& dmdyn::SmartPList< T >::GetAndRemove ( const int &  ind )

inline

Get element and Remove it.

Parameters

ind

Returns

const T&

References dmdyn::GetAndRemoveOnly, dmdyn::CavityQueue< T >::Inqueue(), and dmdyn::CavityQueue< T >::IsInqueuing().

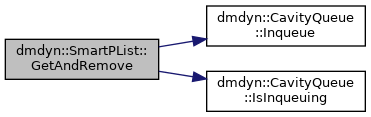

Here is the call graph for this function:

Init()

template<typename T >

void dmdyn::SmartPList< T >::Init ( const int &  num, const int  vnum = 0  )

inline

References dmdyn::CavityQueue< T >::Init().

Here is the call graph for this function:

InitCavityIndex()

template<typename T >

void dmdyn::SmartPList< T >::InitCavityIndex ( )

inline

References dmdyn::CavityQueue< T >::InitQueue().

Here is the call graph for this function:

InitPresreveBuffer()

template<typename T >

void dmdyn::SmartPList< T >::InitPresreveBuffer ( )

inline

References dmdyn::CavityQueue< T >::InitQueue().

Here is the call graph for this function:

InitVirtualRegion()

template<typename T >

void dmdyn::SmartPList< T >::InitVirtualRegion ( )

inline

set the virtual particle length to zero

References dmdyn::AddVirtualListOnly.

InitVirtualWaitingList()

template<typename T >

void dmdyn::SmartPList< T >::InitVirtualWaitingList ( )

inline

References dmdyn::CavityQueue< T >::CleanBuffer(), and dmdyn::CavityQueue< T >::InitQueue().

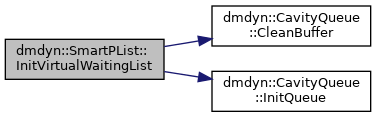

Here is the call graph for this function:

Length()

template<typename T >

const int dmdyn::SmartPList< T >::Length ( )

inline

length of valid field list

Returns

const int

References dmdyn::CavityQueue< T >::Length().

Here is the call graph for this function:

MaxLength()

template<typename T >

const int dmdyn::SmartPList< T >::MaxLength ( )

inline

length of field list including removed position, not including the virtual particle part

Returns

const T

MaxLengthIncludeVirtual()

template<typename T >

const int dmdyn::SmartPList< T >::MaxLengthIncludeVirtual ( )

inline

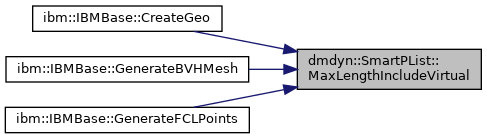

Here is the caller graph for this function:

MaxVirtualRegionLength()

template<typename T >

const int dmdyn::SmartPList< T >::MaxVirtualRegionLength ( )

inline

operator()()

template<typename T >

T& dmdyn::SmartPList< T >::operator() ( const int &  i )

inline

PrintRemovedInd()

template<typename T >

std::string dmdyn::SmartPList< T >::PrintRemovedInd ( )

inline

References dmdyn::CavityQueue< T >::MaxLength().

Here is the call graph for this function:

RemovedList()

template<typename T >

T& dmdyn::SmartPList< T >::RemovedList ( const int &  i )

inline

RemovedMaxSize()

template<typename T >

int dmdyn::SmartPList< T >::RemovedMaxSize ( )

inline

References dmdyn::CavityQueue< T >::MaxLength().

Here is the call graph for this function:

SetAuxstep()

template<typename T >

void dmdyn::SmartPList< T >::SetAuxstep ( const int &  aup, const int &  auf  )

inline

vbegin()

template<typename T >

Iterator dmdyn::SmartPList< T >::vbegin ( )

inline

vend()

template<typename T >

Iterator dmdyn::SmartPList< T >::vend ( )

inline

VirtualRegion()

template<typename T >

T& dmdyn::SmartPList< T >::VirtualRegion ( const int  i )

inline

VirtualWaitingList()

template<typename T >

T& dmdyn::SmartPList< T >::VirtualWaitingList ( const int  i )

inline

VirtualWaitingListMaxSize()

template<typename T >

int dmdyn::SmartPList< T >::VirtualWaitingListMaxSize ( )

inline

References dmdyn::CavityQueue< T >::MaxLength().

Here is the call graph for this function:

Member Data Documentation

_buffer

template<typename T >

Array1<T> dmdyn::SmartPList< T >::_buffer

private

_cind

template<typename T >

CavityIndex dmdyn::SmartPList< T >::_cind

private

_len

template<typename T >

int dmdyn::SmartPList< T >::_len = 0

private

_status

template<typename T >

SPLTag dmdyn::SmartPList< T >::_status = SPLTag::Free

private

_vindtemp

template<typename T >

CavityIndex dmdyn::SmartPList< T >::_vindtemp

private

_vlen

template<typename T >

int dmdyn::SmartPList< T >::_vlen = 0

private

auxstep_fdata

template<typename T >

int dmdyn::SmartPList< T >::auxstep_fdata = 0

auxstep_pdata

template<typename T >

int dmdyn::SmartPList< T >::auxstep_pdata = 0

---

The documentation for this class was generated from the following file:

• /mnt/e/linuxOS/PhyStar/DMDyn/DataStruct/SmartPList.hpp
